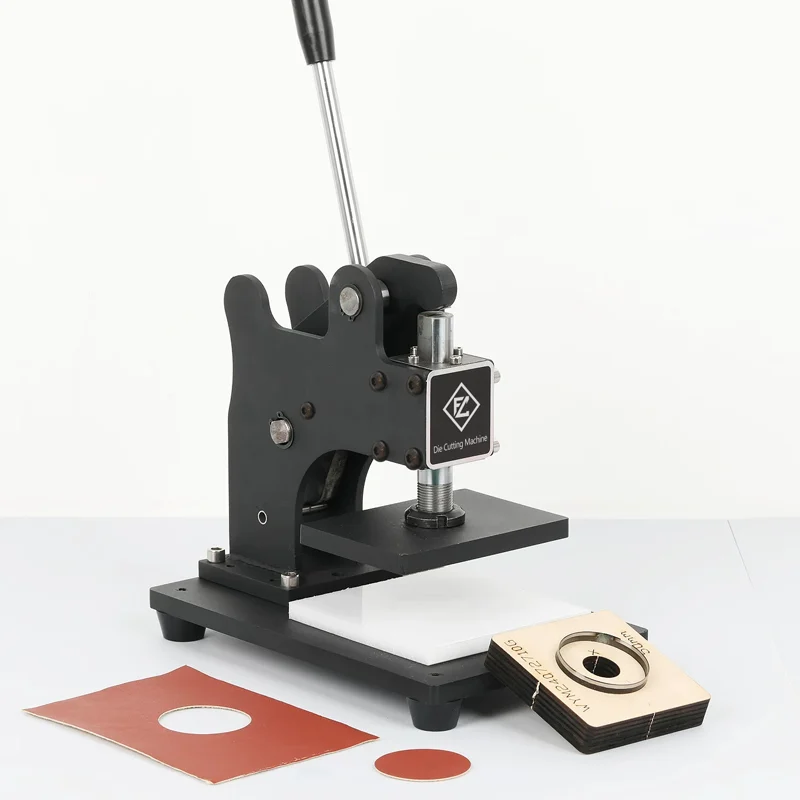

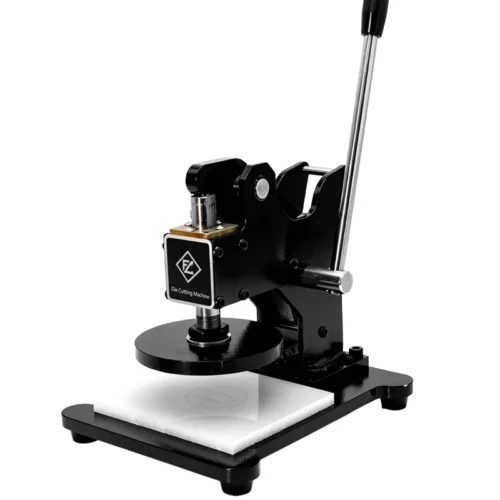

ZF-SMQ Manual Die Cutting Machine

Key Features

• Labor-Saving Lever Handle: Mechanical advantage reduces effort required
• Heavy-Duty C-Frame: Solid steel construction for years of reliable use
• Large Cutting Area: Accommodates various die sizes
• Adjustable Pressure: Fine-tune cutting force for different materials
• Simple Operation: Manual lever press, no electricity or air compressor needed
• Portable Design: Compact footprint, can be moved as needed

Applications

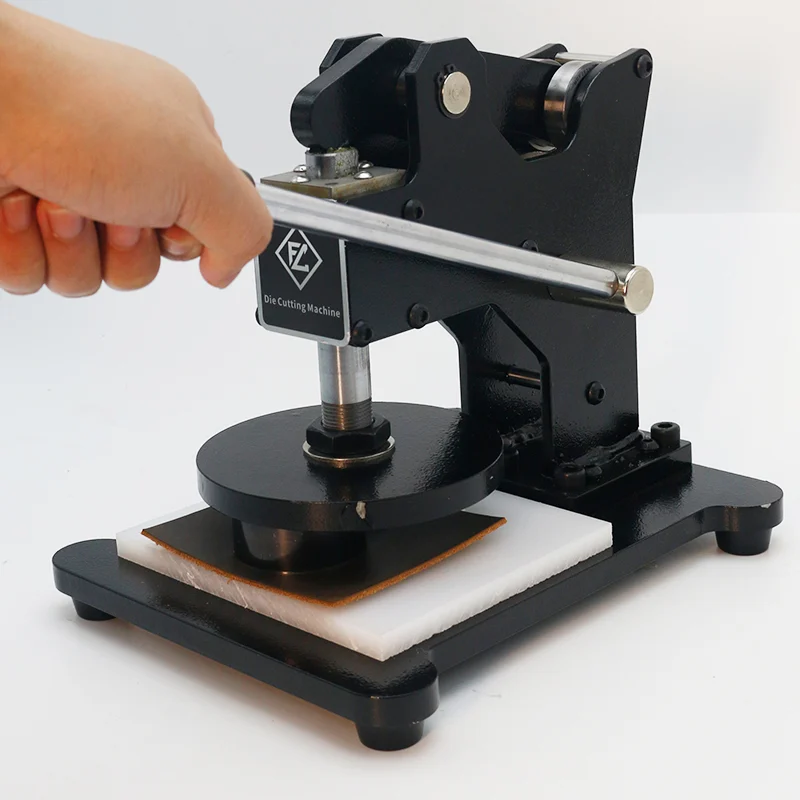

• Leather Die Cutting: Cut leather pieces for wallets, bags, belts, shoes
• Gasket Production: Custom rubber, cork, or foam gaskets
• Fabric Cutting: Precise shapes for quilting, appliqué, upholstery
• Packaging Materials: Custom cardboard or foam inserts
• Craft Projects: Felt, EVA foam, thin plastics

Compatible Dies

Works with custom steel rule dies of various sizes. Our factory can also produce custom cutting dies to match your patterns!

Technical Specifications – Complete Die Cutting Machine Details

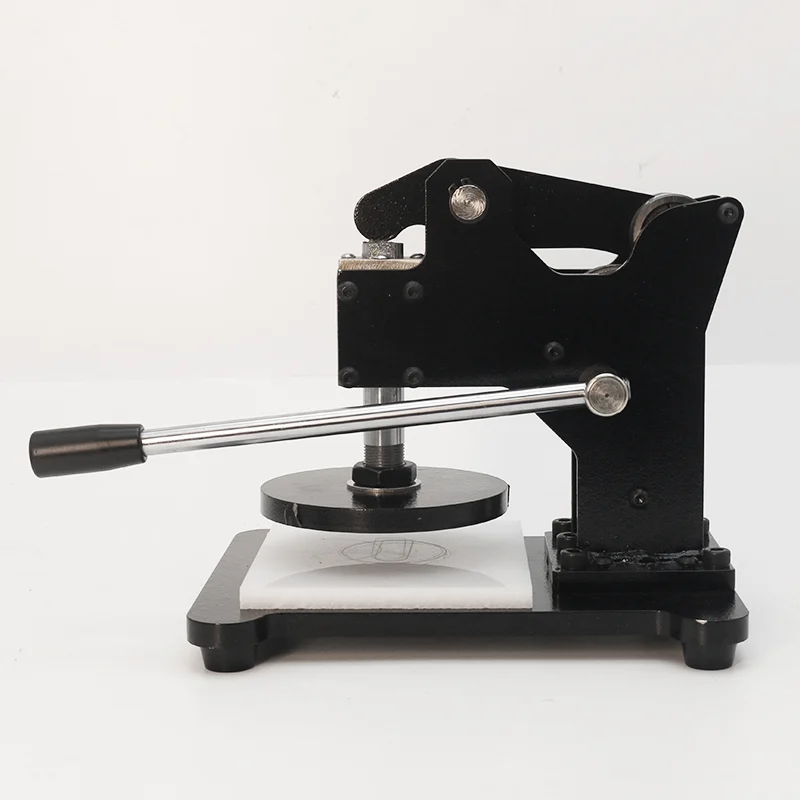

Frame & Structure

• Model: ZF-SMQ
• Frame Type: Heavy-duty C-frame construction

• Frame Material:

  • Cold-rolled steel plate (8-10mm thickness)
  • Powder-coated finish (black or gray)
  • Reinforced stress points welded

• Throat Depth: 25-35 cm (distance from frame to cutting area)

• Maximum Opening: 15-20 cm (adjustable ram height)
• Frame Rigidity: Minimal deflection (<0.5mm under max load)

Cutting Specifications

• Maximum Cutting Force: 3-5 tons (depending on model size)

  • Small model: 3 tons (~30 kN)
  • Medium model: 4 tons (~40 kN)
  • Large model: 5 tons (~50 kN)

• Cutting Area:

  • Maximum die size: 250×300mm (standard)
  • Custom sizes: Up to 400×500mm available

• Stroke Length: 100-150mm (ram travel distance)

• Cutting Precision: ±0.3mm (with proper die alignment)

Lever Mechanism

• Lever Type: Compound lever with mechanical advantage

• Mechanical Advantage: 1:15 to 1:25 ratio

  • Operator force: 20-30 kg
  • Resulting force: 300-750 kg (amplified by lever)

• Lever Length: 40-60 cm (longer = easier operation, larger footprint)

• Handle Material: Steel tube with rubber or plastic grip
• Lever Travel: ~180° arc (full up to full down)
• Effort Required:
  • Cutting thin leather: Low effort (minimal resistance)
  • Cutting thick materials: Moderate effort (noticeable resistance)

Work Surface & Cutting Board

• Worktable Material:

  • Option 1: Nylon cutting board (self-healing, gentle on dies)
  • Option 2: Rubber mat (soft, absorbs impact)
  • Option 3: Wooden board (traditional, economical)

• Worktable Size: Matches or exceeds die size (typically 300×350mm)

• Worktable Thickness:

  • Nylon: 10-15mm
  • Rubber: 8-12mm
  • Wood: 15-20mm

• Cutting Board Replacement:

  • Nylon boards: Every 10,000-50,000 cuts (depending on material hardness)
  • Rubber mats: Every 5,000-20,000 cuts
  • Quick-change design (no tools required)

• Registration Features:

  • Side stop bars (adjustable for repeat cuts)
  • T-track slots for custom fixtures
  • Grid markings for alignment (optional)

Ram & Pressing Plate

• Ram Material: Machined steel plate (hardened)
• Ram Surface: Flat, parallel to worktable (within 0.1mm across surface)
• Pressing Plate Size: Slightly larger than max die size
• Pressing Plate Material:
  • Steel (standard)
  • Aluminum (lighter, easier operation)
  • UHMW plastic overlay (protects delicate dies)

Compatible Dies & Materials

Die Types:

• Steel Rule Dies (most common):

  • Laser-cut plywood base with steel cutting rule
  • Rule height: 15.8mm (5/8″), 23.8mm (15/16″)
  • Compatible with materials up to 10mm thick

• Clicker Dies:

  • Solid steel cutting edges
  • Heavier, more durable
  • For thick/tough materials

• Custom Dies: We can manufacture dies to your patterns

Cuttable Materials:

Materials NOT Recommended:

• Hard plastics (acrylic, polycarbonate) – too brittle, will crack
• Metal – requires hydraulic press
• Thick hardwood – needs saw or router
• Glass, ceramics – will shatter

Machine Dimensions & Weight

• Overall Dimensions (L×W×H): 50×40×70 cm (approximate, varies by model)
• Base Footprint: 40×35 cm
• Net Weight: 35-50 kg (depending on frame size)
• Gross Weight: 40-55 kg (with packaging)
• Packaging: Wooden crate or heavy cardboard with foam

Operation & Ergonomics

• Operating Position: Standing (optimal) or sitting on high stool
• Operating Height: Work surface at 85-95 cm from floor
• Two-Hand Operation: Recommended for safety and control
• Cuts per Minute:
  • Manual positioning: 10-15 cuts/min
  • With stop jigs: 20-30 cuts/min
  • Maximum sustained rate: 40-50 cuts/min (operator fatigue becomes factor)

Safety Features

• Lever Lock: Prevents accidental lever release during material positioning
• Hand Guard: Optional clear shield to keep hands away from cutting area
• Non-Slip Feet: Rubber pads prevent machine movement during operation
• Finger Safety: Requires two-hand operation (both hands on lever = not in cutting zone)

Safety Guidelines:

• Always keep hands clear of die area when operating lever
• Use push stick for small pieces near die edges
• Inspect dies for damage before use (sharp burrs can cause injury)
• Wear safety glasses when cutting materials that may produce fragments
• Ensure machine is on stable, level surface

Maintenance Requirements

Daily (with regular use):

• Wipe down worktable and remove material scraps
• Check lever pivot for smooth operation
• Inspect cutting board for excessive wear

Weekly:

• Lubricate lever pivot point with light machine oil
• Check all bolts and fasteners for tightness
• Clean and oil ram sliding surfaces

Monthly:

• Inspect cutting board – replace if deep grooves present
• Check frame for cracks or deformation
• Verify ram parallelism (adjust if needed)

Annually:

• Full disassembly and cleaning
• Re-lubricate all moving parts
• Inspect for wear and replace worn components
• Re-paint if corrosion or damage to finish

Accessories & Add-Ons

Included:

• Nylon or rubber cutting board
• Basic tool kit (Allen wrenches for adjustments)
• User manual

Optional Accessories:

• Extra Cutting Boards: Replacement nylon or rubber boards
• Custom Steel Rule Dies: We manufacture to your patterns
• Stop Bars & Jigs: For repetitive cutting with precise positioning
• Clicker Dies: Heavy-duty solid steel dies for thick materials
• Foot Pedal Adapter (for larger models): Frees hands for material handling
• Transparent Safety Shield: Polycarbonate guard
