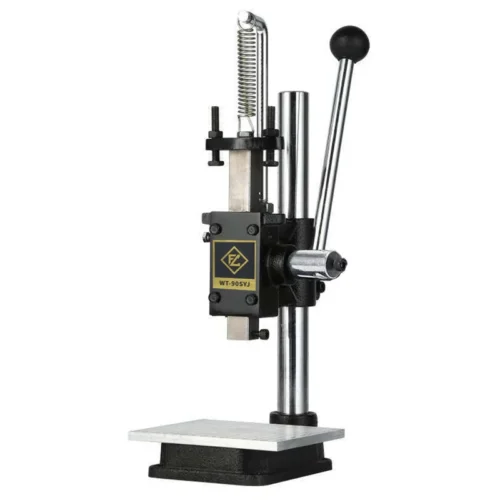

WT-90SYJ Manual Arbor Press

Key Features

• Lever Operation: Smooth, controlled pressing force
• Scale Worktable: Measurement grid for accurate positioning
• Adjustable Pressing Head: Height-adjustable for different mold sizes
• Solid Steel Frame: Industrial-grade construction
• Multi-Purpose: Embossing, stamping, pressing, light assembly

Perfect For

• Soap Making: Emboss logos and patterns on handmade soap bars
• Leather Crafting: Stamp designs without a hot stamping machine (cold stamping)
• Craft Production: Press buttons, snaps, rivets, eyelets
• Assembly Work: Light pressing tasks in small-scale manufacturing
• Jewelry Making: Texture and pattern pressing

Technical Specifications – Manual Arbor Press Details

Frame & Construction

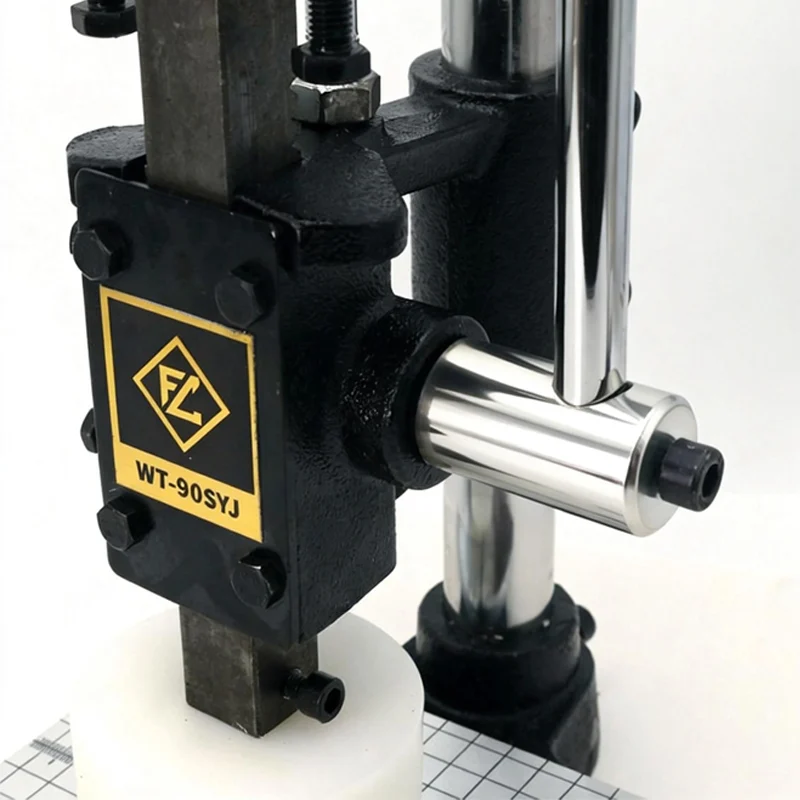

• Model: WT-90SYJ
• Frame Type: Vertical arbor press, C-frame design

• Frame Material: Cast iron or welded steel (depending on model)

  • Cast iron: More rigid, dampens vibration, heavier
  • Welded steel: Lighter, portable, still very strong

• Frame Finish:

  • Powder-coated black or gray
  • Corrosion-resistant coating

• Throat Depth: 15-20 cm (distance from frame to ram centerline)

• Maximum Opening: 20-25 cm (ram to base distance, fully extended)
• Overall Height: 50-65 cm

Pressing Specifications

• Pressing Force:

  • Manual effort: 20-40 kg force on handle
  • Resulting force: 200-500 kg at ram (depends on lever ratio)
  • Mechanical advantage: 1:10 to 1:15

• Ram Diameter: 18-25mm (steel rod, hardened tip)

• Ram Travel: 15-20 cm stroke length
• Ram Material: Hardened steel (HRC 50-55)
• Ram Tip:
  • Flat face (standard)
  • Threaded hole for attachments (M8 or M10)
  • Interchangeable tips available

Lever Mechanism

• Lever Type: Single-arm compound lever
• Lever Length: 25-35 cm
• Lever Material: Steel rod with plastic or rubber handle grip
• Lever Ratio: ~1:12 (12× force multiplication)
• Handle Grip:
  • Diameter: 25-30mm (comfortable hand size)
  • Material: Plastic (economical) or rubber (premium)
  • Knurled or smooth texture

Worktable Specifications

• Worktable Material:

  • Cast aluminum (lightweight, corrosion-resistant)
  • Steel plate (heavy-duty, more durable)

• Worktable Size: 15×18 cm (or similar)

• Surface Treatment:

  • Anodized (aluminum) – hard, scratch-resistant
  • Powder-coated (steel) – corrosion protection

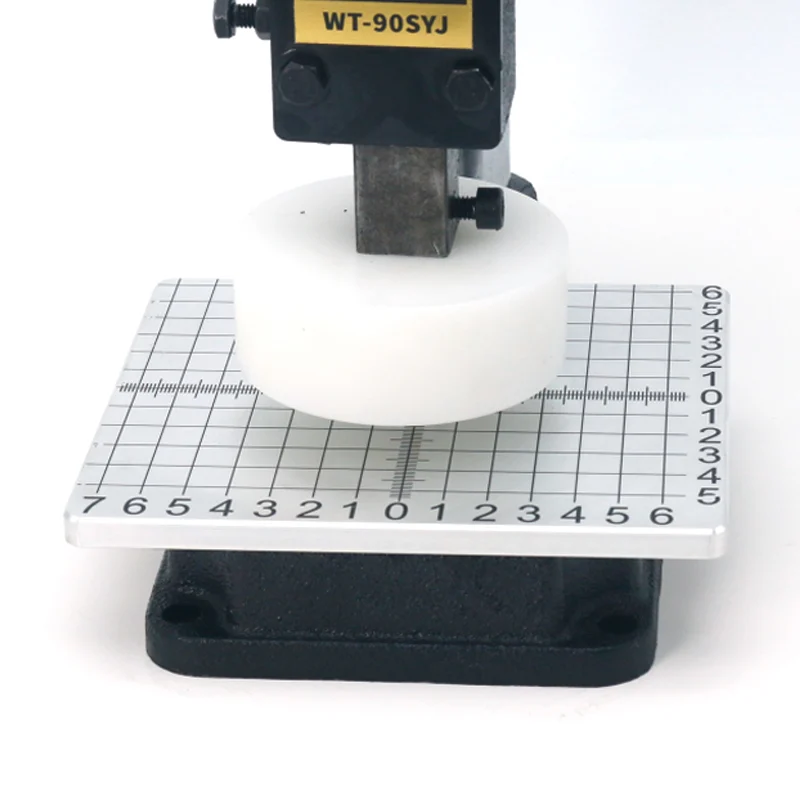

• Grid Scale:

  • Laser-etched or stamped measurement grid
  • Grid spacing: 1cm squares
  • Numbered axes for positioning reference

• Worktable Adjustment:

  • Height Adjustment: Rotating screw mechanism
  • Adjustment range: 10-15 cm vertical travel
  • Locking mechanism: Jam nut or lock collar
  • Precision: 1mm increments (or finer with calibrated dial)

Pressing Head Attachments

Standard Flat Head:

• Diameter: 20-30mm
• Material: Hardened steel
• Surface: Polished flat (parallel within 0.05mm)

Optional Attachments:

• Embossing Dies: Threaded mount for custom brass stamps
• Snap/Rivet Setter: For installing hardware
• Eyelet Setter: Various sizes for leather/fabric grommets
• Button Press Dies: For covering buttons with fabric
• Soap Stamp Heads: Custom engraved patterns for handmade soap

Applications & Performance

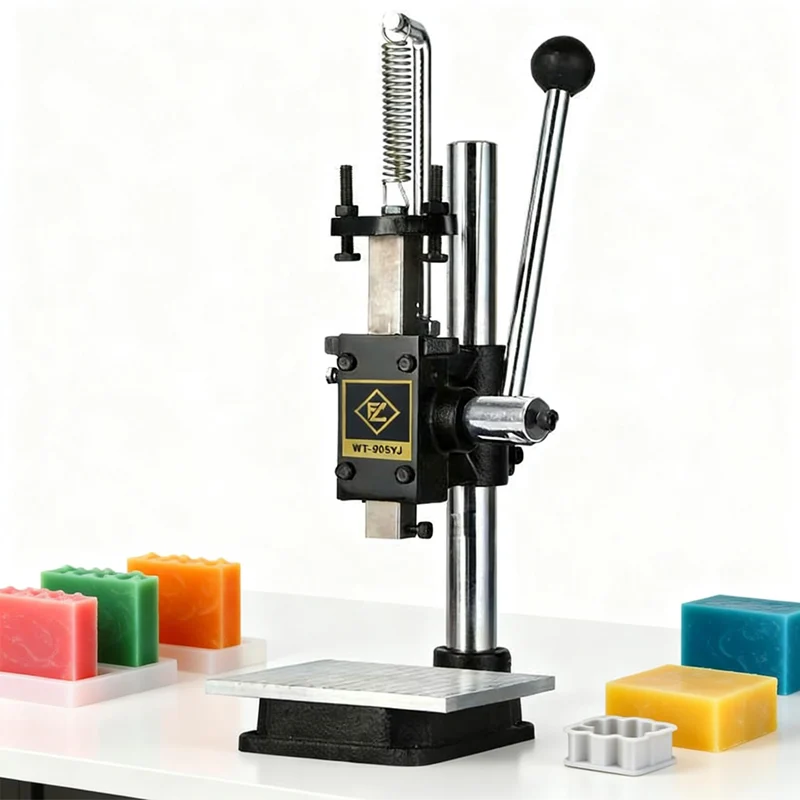

Soap Embossing:

• Soap Hardness: Works with cold-process, melt-and-pour, milled soap
• Optimal Timing: Press when soap is firm but not fully cured (24-48 hours after pouring)
• Pressure Required: Light-medium (soap is soft)
• Imprint Depth: 2-5mm (depending on soap hardness and mold detail)
• Recommended Molds: Brass or acrylic stamps, 40-80mm diameter

Leather Stamping (Cold):

• Process: Pressing leather stamps without heat
• Leather Type: Veg-tan leather (dampened for better impression)
• Pressure: High force needed for deep impressions
• Applications:
  • Belt hole punching
  • Snap setting
  • Rivet installation
  • Embossing patterns (with dampened leather)

Craft Applications:

• Button Covering: Press fabric onto button shells
• Eyelet Setting: Install grommets in fabric, leather, vinyl
• Badge Making: Press pin backs onto badge fronts
• Jewelry Making: Set stones, press metal findings

Light Assembly Work:

• Bearing Installation: Press bearings into housings (small bearings only)
• Pin Insertion: Install dowel pins, roll pins
• Press-Fit Assembly: Join components with interference fits
• Staking/Swaging: Deform metal to secure parts

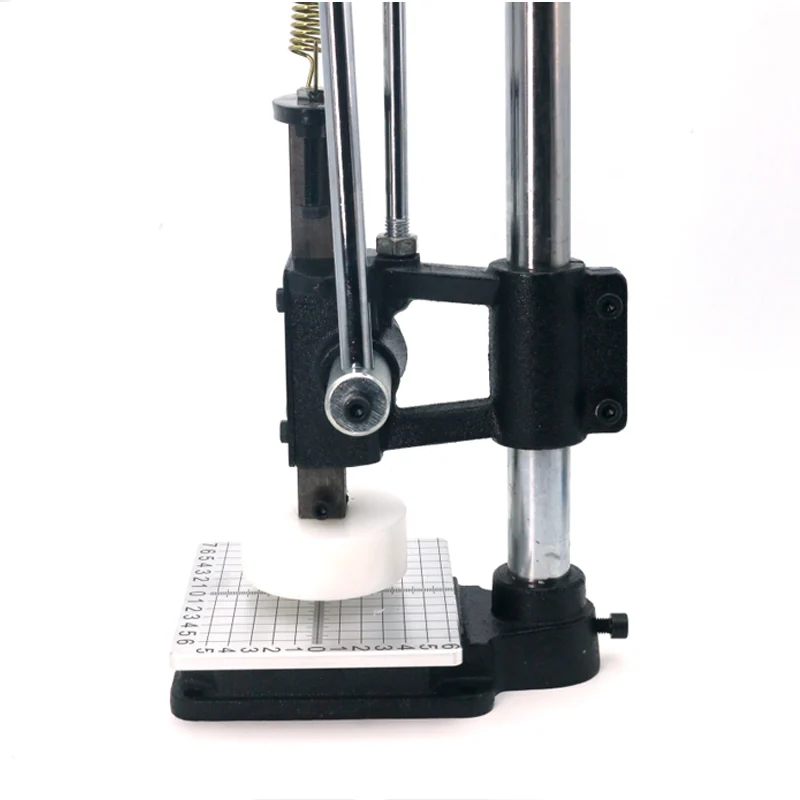

Machine Dimensions & Weight

• Overall Dimensions (L×W×H):

  • Base: 18×22 cm
  • Height: 50-65 cm
  • Throat depth: 15-20 cm

• Net Weight: 8-15 kg (varies by model)

  • Cast iron frame: 12-15 kg
  • Welded steel frame: 8-10 kg

• Gross Weight: 10-17 kg (with packaging)

• Packaging: Cardboard box with foam inserts, or wooden crate for export

Operating Guidelines

Setup:

1. Place press on stable workbench or table
2. Optional: Bolt to bench through base mounting holes (4× M8 holes)
3. Adjust worktable height for comfortable operation
4. Install appropriate pressing head/die

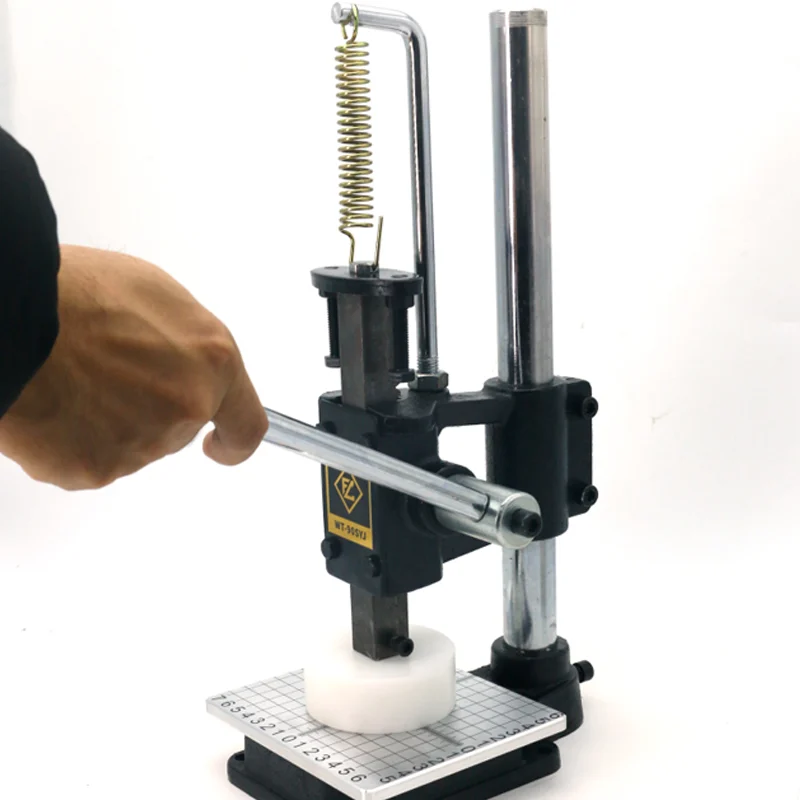

Operation:

1. Position workpiece on grid worktable (use scale for alignment)
2. Lower ram by hand to check positioning
3. Apply lever force smoothly and steadily (avoid sudden jerks)
4. Hold pressure for 1-3 seconds
5. Release lever and raise ram
6. Remove workpiece

Best Practices:

• Use consistent force for repeatable results
• Support uneven workpieces to prevent tilting
• Place protective material between ram and delicate items
• Don’t exceed press capacity (risk of frame damage or bending ram)

Maintenance

Weekly:

• Wipe down all surfaces
• Check ram for smooth travel (should slide freely)
• Lubricate ram column with light oil

Monthly:

• Clean and lubricate lever pivot points
• Check worktable adjustment screw threads – apply grease if needed
• Inspect all bolts/fasteners for tightness

Annually:

• Disassemble and thoroughly clean all components
• Inspect ram for wear, straightness
• Re-lubricate all moving parts
• Touch up paint if scratched or chipped

Safety Considerations

• Keep hands clear of ram and pressing area when operating lever
• Don’t exceed rated capacity (can bend ram or crack frame)
• Wear safety glasses when pressing materials that may fracture
• Ensure workpiece is stable and won’t shift during pressing
• For very hard materials, press slowly to avoid sudden shifts

Accessories

Included:

• Flat pressing head
• Adjustment wrench for worktable
• User manual

Optional:

• Set of embossing dies (various sizes)
• Snap/rivet setter kit (multiple sizes)
• Eyelet setter kit (4mm, 6mm, 8mm, 10mm)
• Protective pressing pads (rubber, felt, Teflon)
• Mounting bolts and brackets (for bench installation)
