Custom Brass Branding Irons

Available Design Styles

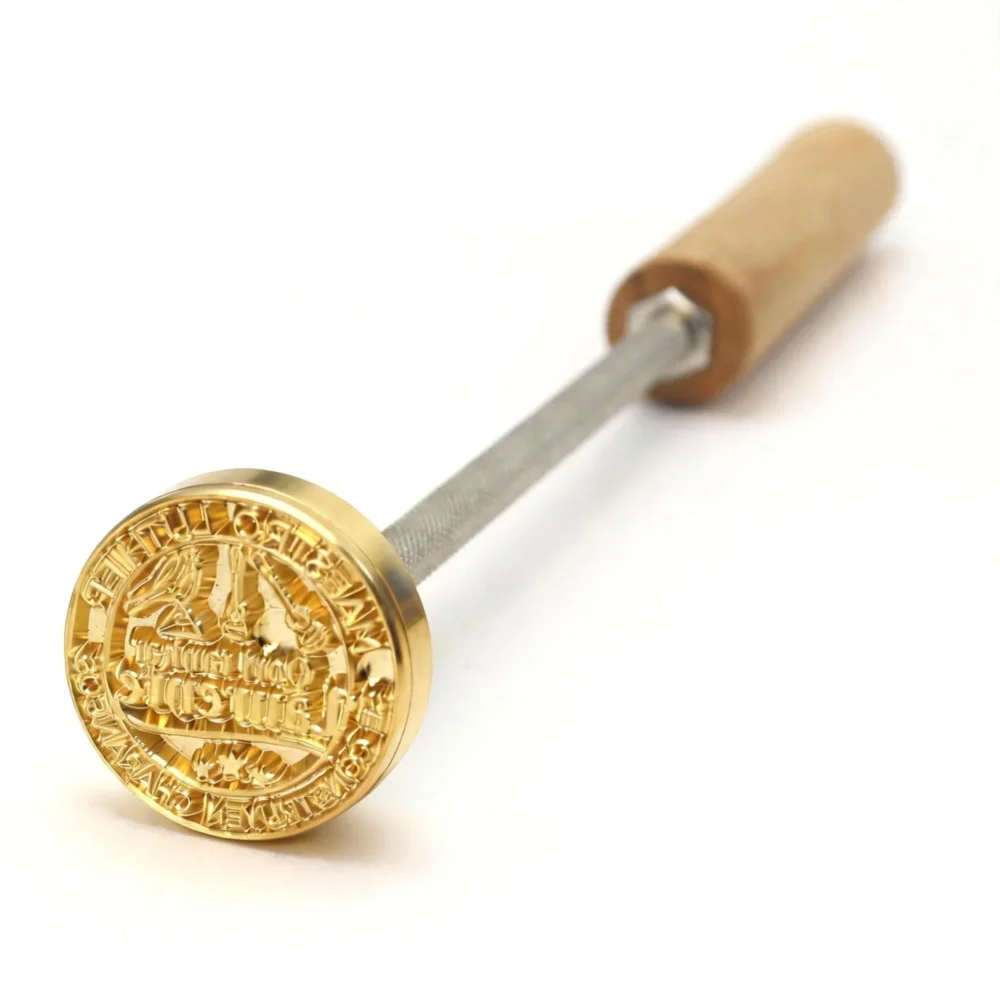

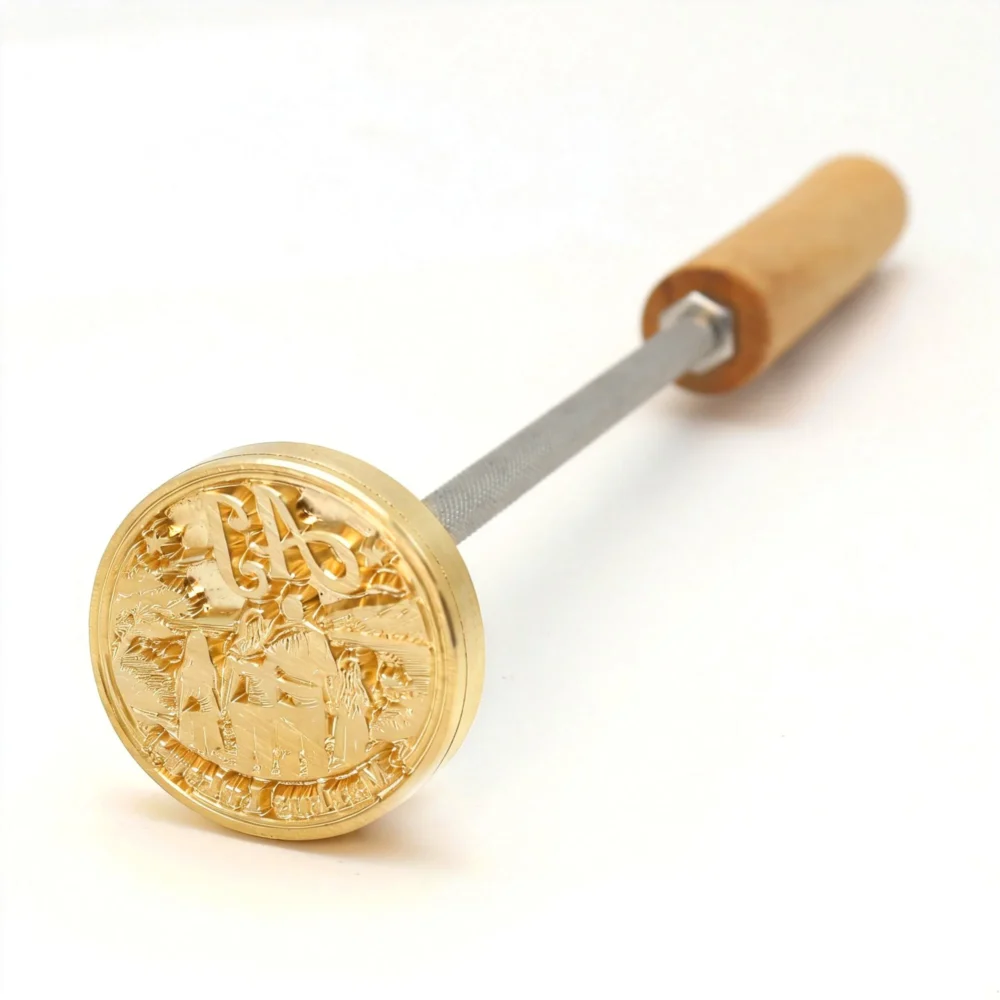

• Round Badge: Classic circular logo format

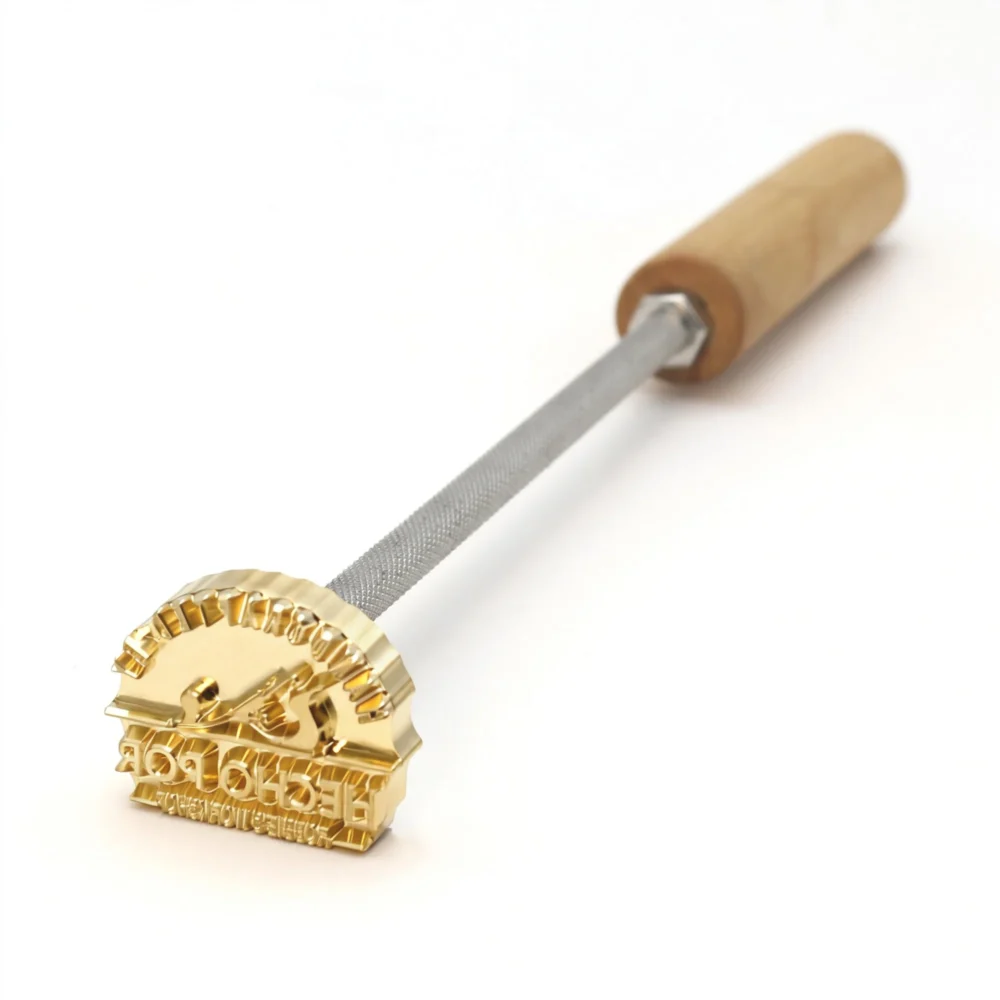

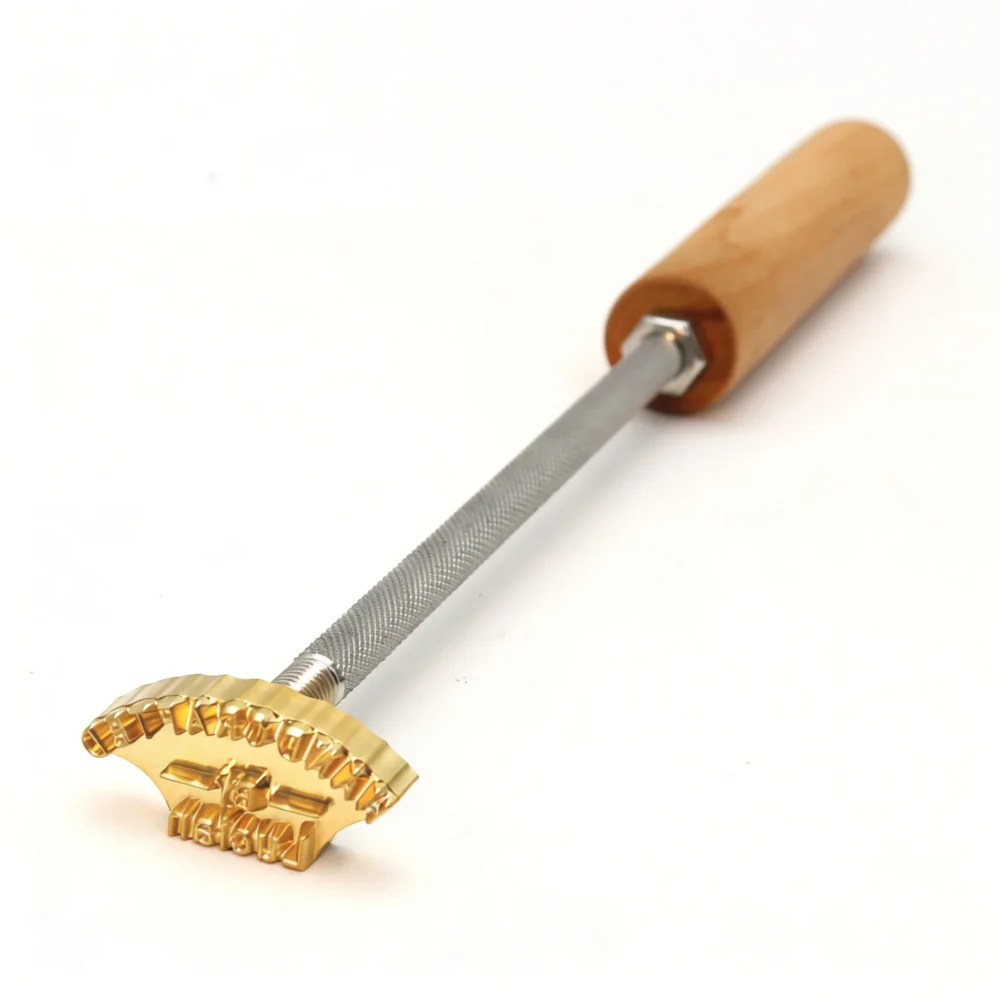

• Arch Badge: Curved text for vintage appeal

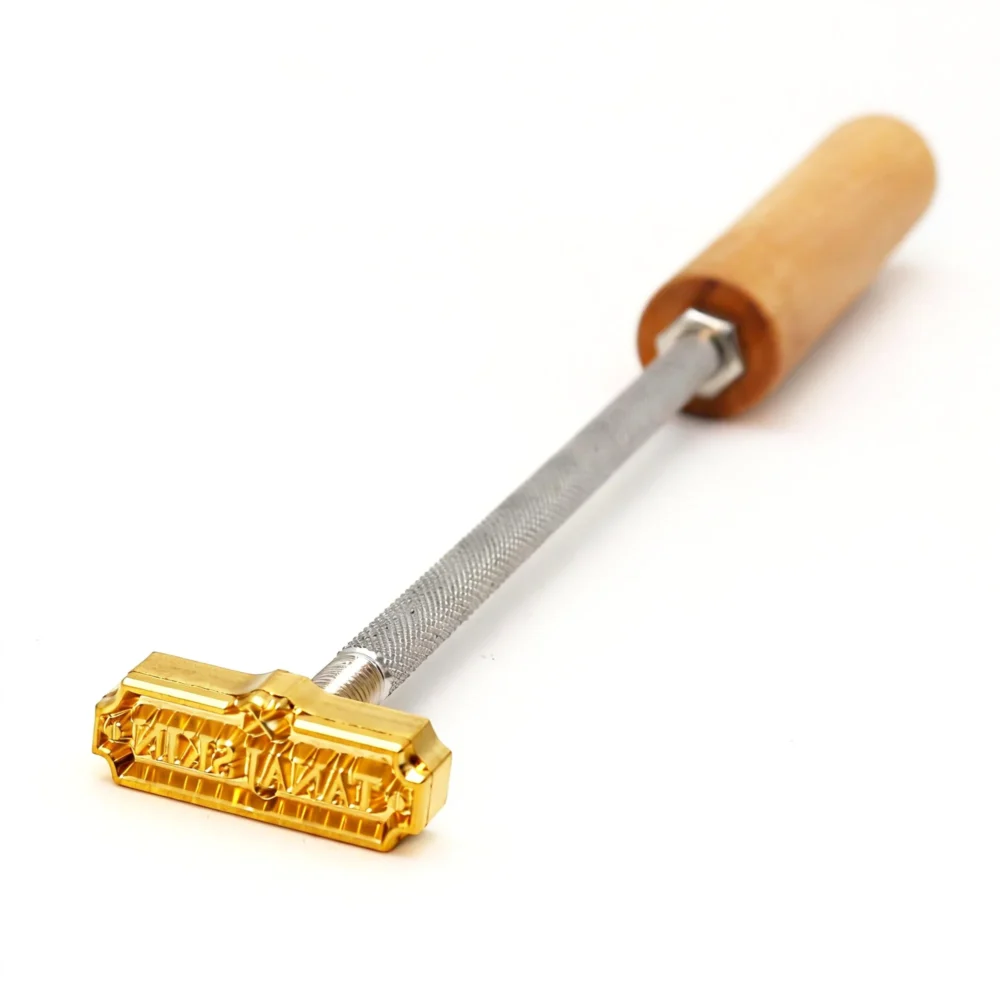

• Rectangular: Traditional stamp shape

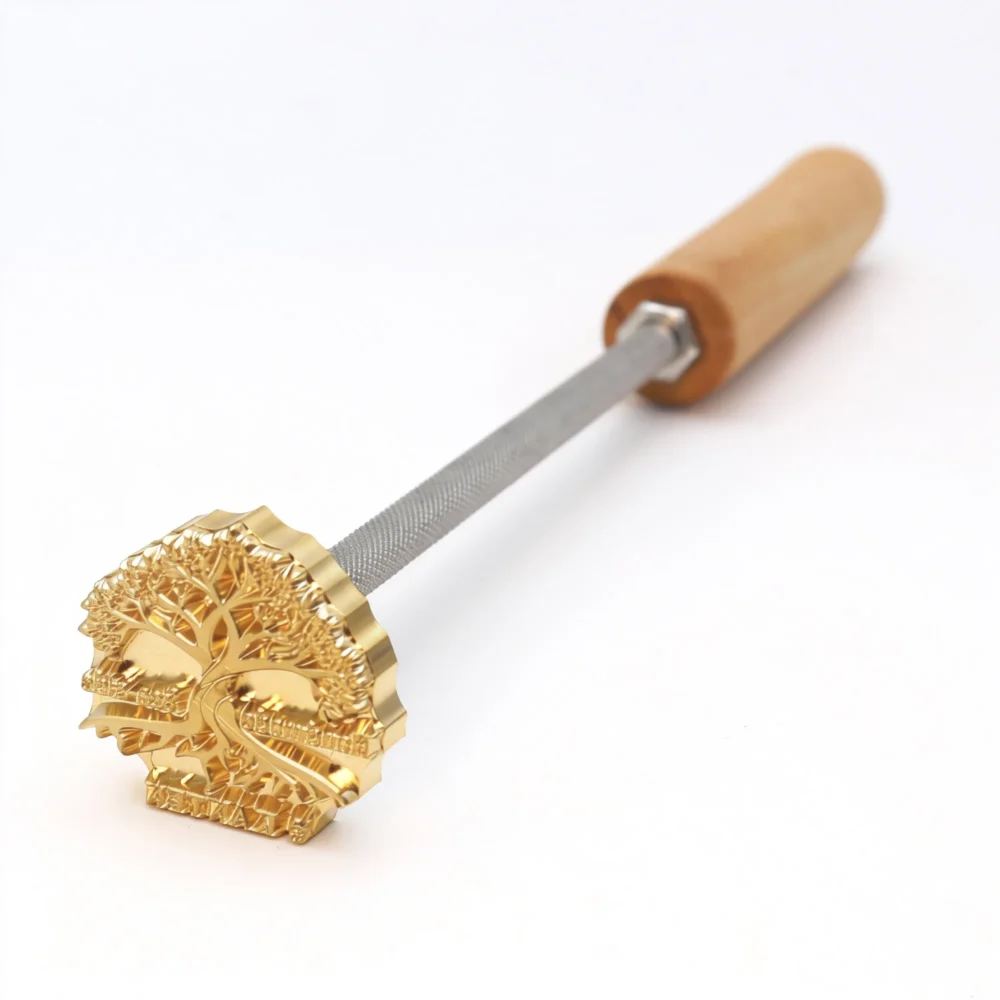

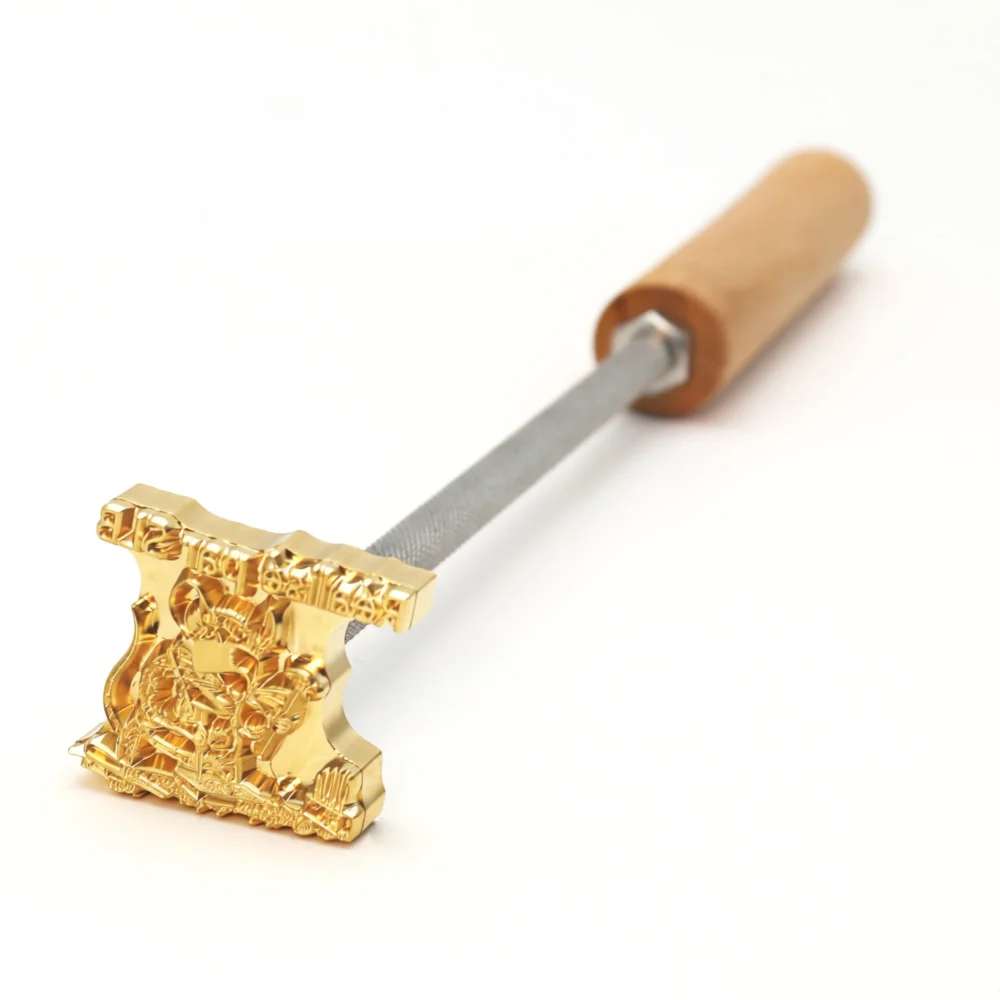

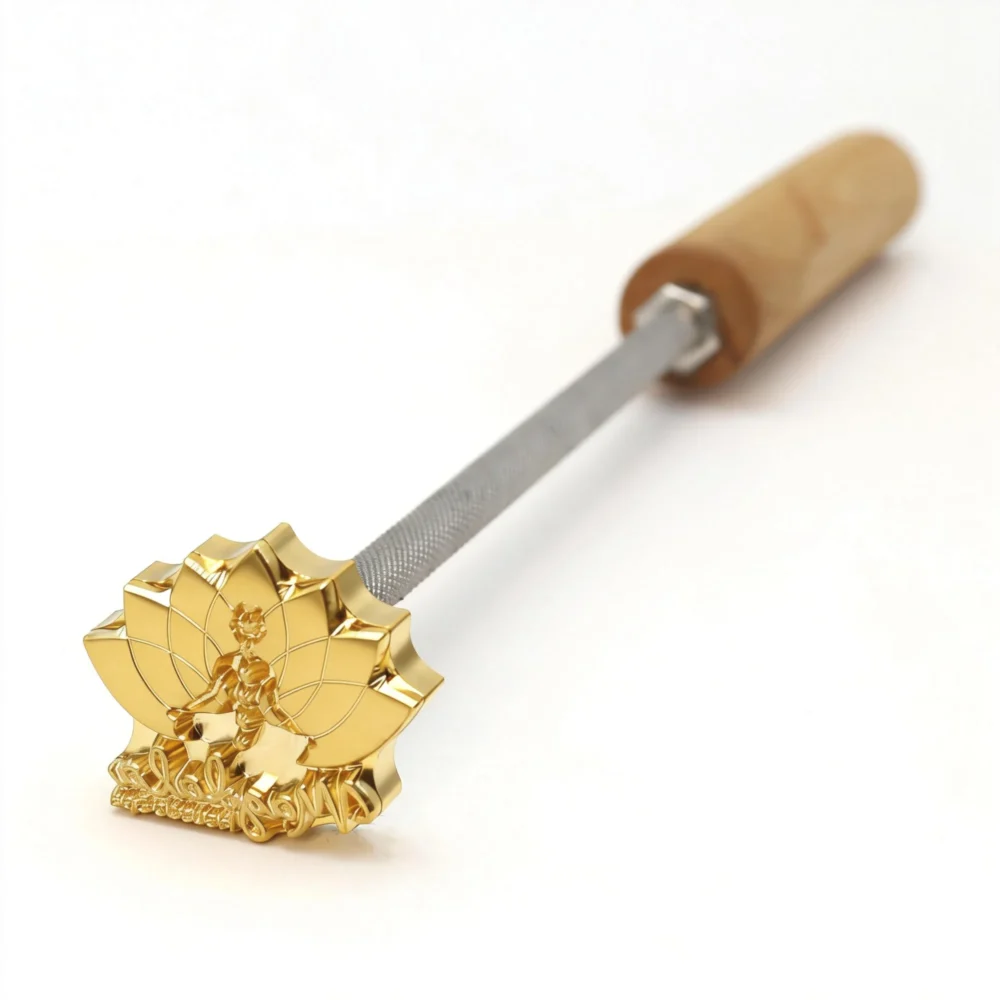

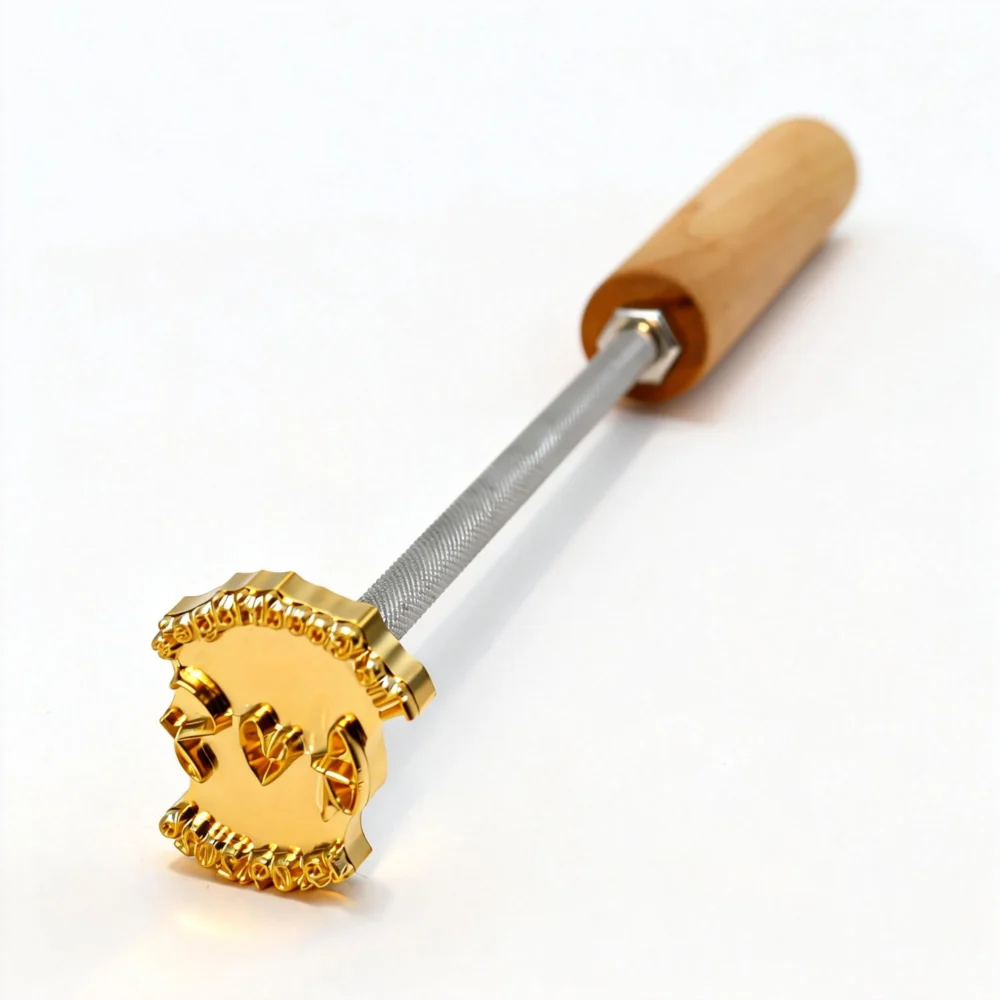

• Custom Shapes: Hearts, lotus, tree of life, crests

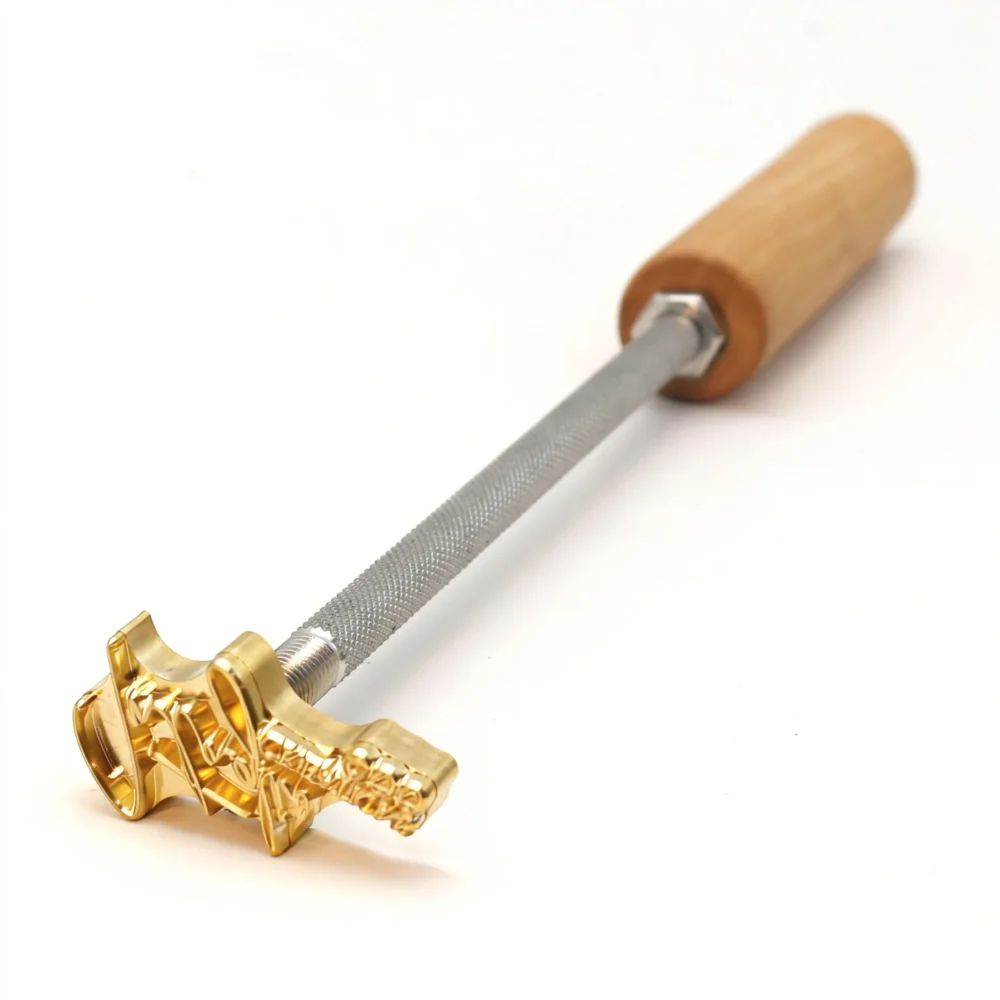

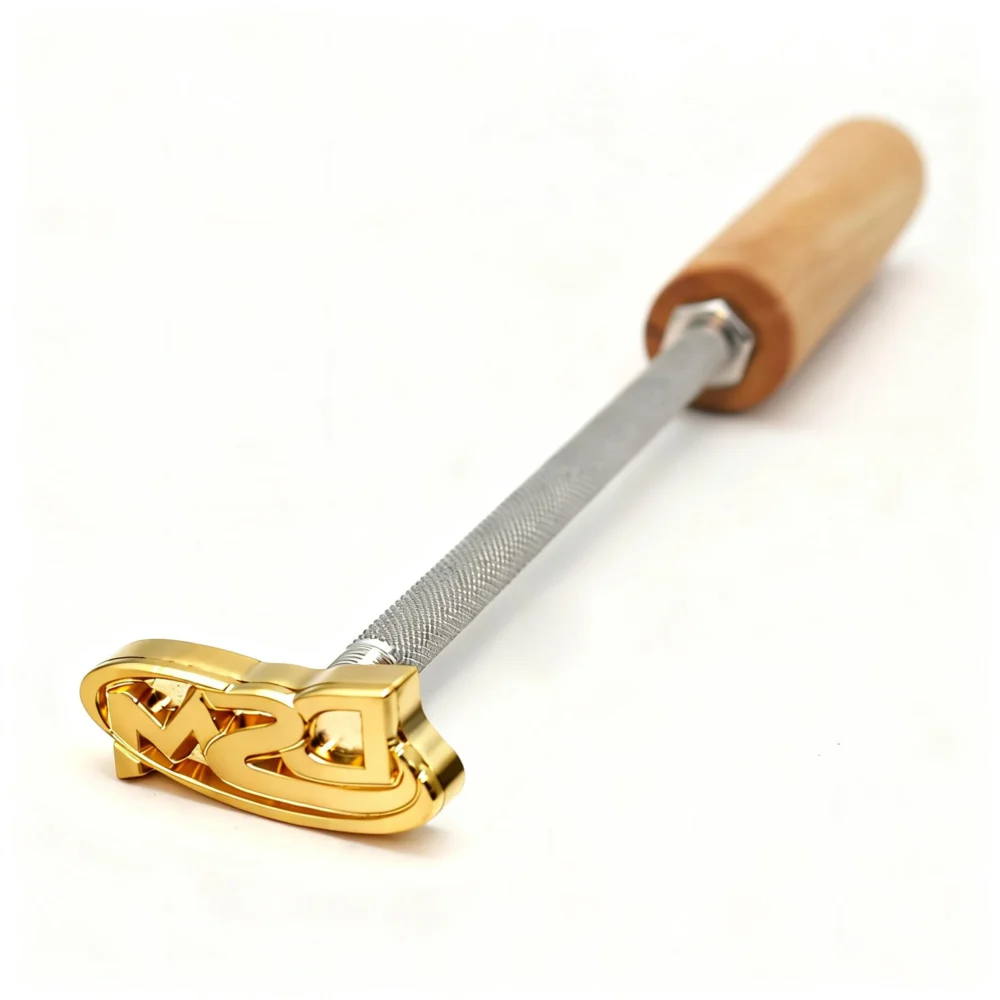

• Hollow-Out Letters: Modern, artistic text designs

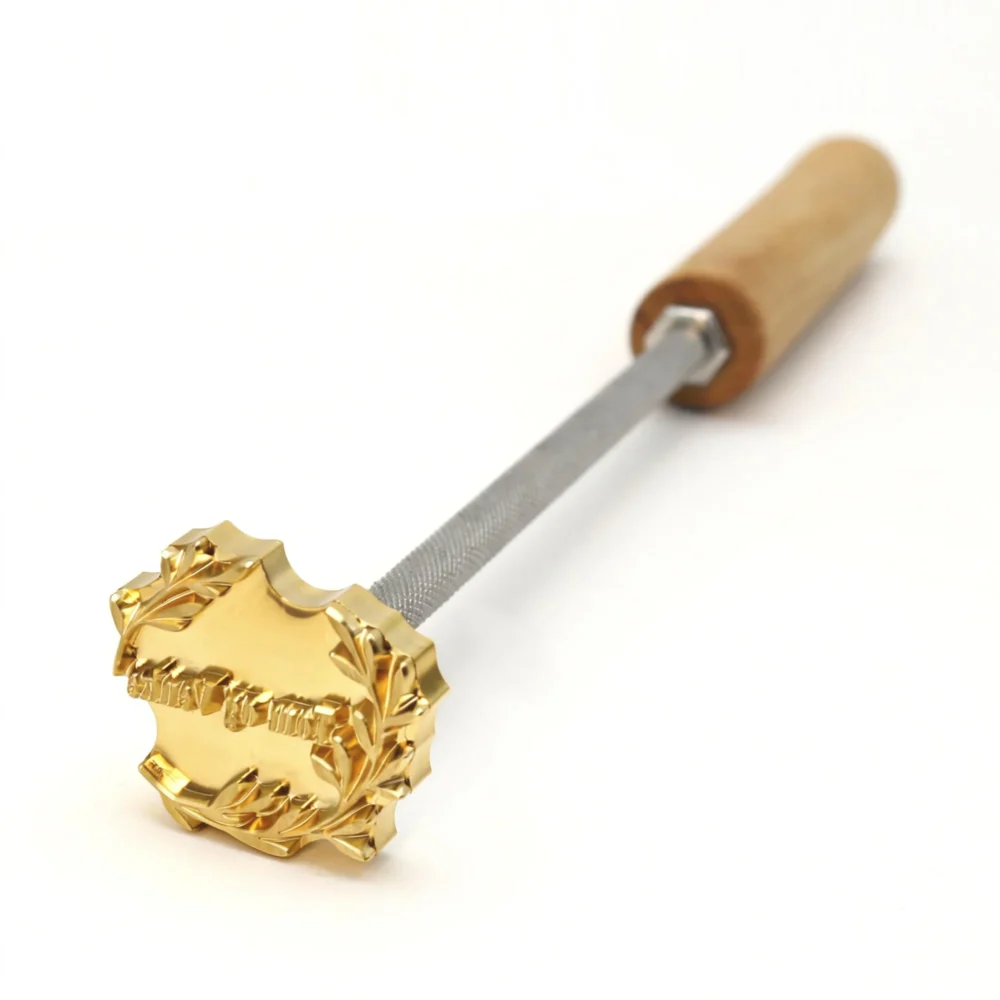

• Laurel Wreath: Elegant ceremonial motif

Key Features

• Precision Brass Head: Engraved to 0.01mm accuracy
• Natural Wooden Handle: Comfortable, heat-resistant grip
• Threaded Shank: Easy attachment/removal of brass head
• Customizable Size: From small logos to large branding plates
• Interchangeable Heads: Use multiple designs with one handle (optional)

Technical Specifications – Complete Details

Brass Branding Head Specifications

• Material: H62 brass alloy (food-safe, heat-resistant)

  • Composition: 62% copper, 38% zinc
  • Melting point: 900-940°C (far above operating temperature)
  • Thermal conductivity: 109 W/(m·K) – excellent heat transfer
  • Hardness: 90-110 HV (Vickers)

• Head Dimensions:

  • Small Round: Ø 20-40mm, 10mm base thickness
  • Medium Round: Ø 40-60mm, 12mm base thickness
  • Large Round: Ø 60-80mm, 15mm base thickness
  • Rectangular: Various sizes from 20×40mm to 60×100mm
  • Custom Shapes: Any size up to 100×100mm

• Engraving Specifications:

  • Depth: 3-4mm standard (shallow areas 1-2mm, deep areas up to 5mm)
  • Precision: ±0.01mm CNC accuracy
  • Minimum Line Width: 0.3mm (finer details possible with advanced tooling)
  • Minimum Text Height: 3mm for legibility on wood branding
  • Surface Finish: Polished or brushed brass (affects branding appearance)
  • Edge Treatment: Beveled edges prevent material catching

• Mounting System:

  • Standard Thread: M5 or M8 metric thread (M8 most common)
  • Thread Length: 25-35mm for secure attachment
  • Thread Type: Coarse pitch (1.25mm) for strength
  • Mounting Hole: Centered or offset (specify preference)
  • Alternative Mounts:
    • Aluminum T-bar (for quick-change systems)
    • Embedded square insert (for permanent installations)
    • Set screw collar (for adjustable height)

• Weight by Size:

  • Small (Ø 30mm): 50-80g
  • Medium (Ø 50mm): 120-180g
  • Large (Ø 70mm): 250-350g
  • Extra Large (80×100mm): 400-600g

Wooden Handle Specifications

• Wood Types Available:

  1. Beech (Economy):

     • Light blonde color
     • Dense, smooth grain
     • Moderate durability
     • Good heat insulation

  2. Walnut (Premium):

     • Rich dark brown color
     • Beautiful grain patterns
     • Excellent durability
     • Superior heat resistance

  3. Oak (Professional):

     • Medium brown, prominent grain
     • Very durable and strong
     • Traditional appearance
     • Long-lasting

• Handle Dimensions:

  • Length: 12-16 cm (varies by design)
  • Maximum Diameter: 28-32mm (comfortable grip)
  • Grip Section Length: 8-10 cm
  • Taper: Gradual from 32mm (grip) to 20mm (brass end)

• Handle Construction:

  • Manufacturing: CNC turned on lathe, hand-sanded
  • Grain Orientation: Vertical (along handle length for strength)
  • Moisture Content: 8-12% (kiln-dried, stable)
  • Finish: Food-safe mineral oil or polyurethane lacquer
  • Coating Layers: 3-5 coats for durability
  • Heat Resistance: Up to 150°C before damage

• Thread Insert:

  • Type: Brass threaded insert (heli-coil or solid insert)
  • Installation: Epoxy-bonded for permanent attachment
  • Thread Spec: M8 × 1.25mm × 25mm depth
  • Pull-Out Strength: >500N (very secure)

Branding Iron Assembly Specifications

• Total Length (assembled): 18-22 cm
• Total Weight:
  • Small: 80-120g
  • Medium: 150-250g
  • Large: 300-450g
• Balance Point: Designed for comfortable hand-held operation (slightly forward of grip center)
• Thread Engagement: Minimum 15mm for safety (prevents head loosening during use)
• Heat Shielding: Optional heat shield washer between head and handle (stainless steel, prevents handle scorching)

Custom Design Technical Specifications

Design Constraints & Guidelines:

• Minimum Feature Size: 0.5mm (thinner lines may close up during branding)
• Minimum Text Height:
  • 3mm for sans-serif fonts
  • 4mm for serif fonts
  • 5mm for script/cursive fonts
• Maximum Detail Density: Avoid areas with >70% coverage (may cause uneven heating)
• Line Spacing: Minimum 0.5mm gap between adjacent elements
• Recommended Character Stroke Width: 0.8-1.5mm for clarity

Artwork Preparation:

• File Formats: AI (Adobe Illustrator), PDF, EPS, DXF preferred
  • Vector format required for precision
  • Raster images (JPG, PNG) require vectorization ($10-30 fee)
• Color: Black and white (grayscale ignored, converted to binary)
• Orientation: Submit artwork in intended branding orientation
• Bleed/Safety Margin: Add 2mm margin around critical elements
• Text: Convert to outlines/paths before submission

Manufacturing Process:

1. Design Optimization: Our team reviews and adjusts for manufacturability
2. Toolpath Generation: CAM programming for CNC machine
3. CNC Engraving:
   • Rough cut: 2mm ball-end mill
   • Finish cut: 0.5mm or 1mm ball-end mill
   • Engraving time: 15-90 minutes depending on complexity
4. Hand Finishing:
   • Deburring with fine files
   • Polishing engraved surfaces
   • Edge smoothing
5. Handle Installation: Thread insert epoxied, brass head threaded on
6. Quality Control: Visual inspection, test branding on sample wood
7. Packaging: Individual poly bag, foam wrap, cardboard box

Application Methods – Detailed Instructions

Method 1: Electric Branding Iron Holder (Recommended for Consistency)

Equipment Needed:

• Hot stamping machine (like ZHENGFEI WT-90XTS, EC-17, EC-27)
• Branding iron with threaded shank
• Temperature controller

Setup:

1. Install branding iron in machine’s mold holder
2. Set temperature based on material:
   • Softwoods (pine, basswood): 280-320°C
   • Hardwoods (oak, walnut, maple): 320-380°C
   • Leather (veg-tan): 180-220°C
   • Cork/Bamboo: 250-300°C
3. Wait 3-5 minutes for brass head to reach temperature
4. Test on scrap material first

Advantages:

• Consistent temperature (±5°C)
• Repeatable results for production runs
• Hands-free heating (work on positioning while heating)
• Safety (no open flames)
• Pressure control via machine lever

Technique:

• Position material on worktable
• Lower heated branding iron onto surface
• Apply steady pressure via machine lever
• Hold for 5-15 seconds (varies by material & depth desired):
  • Light mark: 5-8 seconds
  • Medium brand: 8-12 seconds
  • Deep/dark brand: 12-18 seconds
• Lift straight up (no dragging)

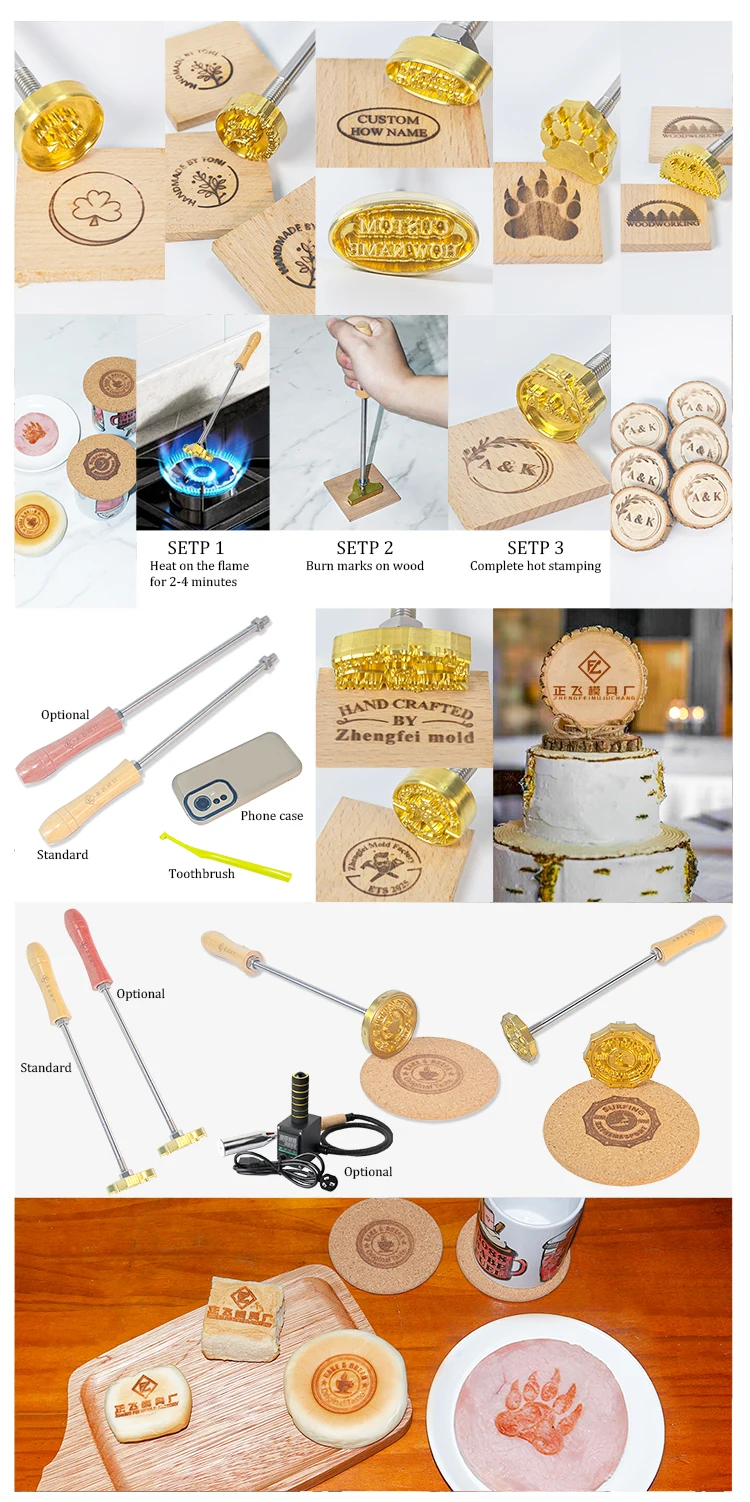

Method 2: Open Flame Heating (Traditional/Portable)

Equipment Needed:

• Propane torch or camping stove
• Branding iron with wooden handle
• Heat-resistant gloves
• Fire extinguisher nearby

Heating Process:

1. Light torch or stove (medium flame, not full blast)
2. Hold brass head 5-10cm above flame (not in direct contact)
3. Rotate branding iron continuously (prevents hotspots)
4. Heat for 2-5 minutes depending on head size:
   • Small (30mm): 2-3 minutes
   • Medium (50mm): 3-4 minutes
   • Large (70mm): 4-5 minutes
5. Temperature Test:
   • Spit test: Small water droplet should sizzle and evaporate within 1-2 seconds
   • Touch test: Approach bare wood – should lightly smoke when 2-3cm away
   • Target temp: 300-400°C for wood

Safety Precautions:

• Never heat wooden handle – keep at least 5cm from flame
• Use heat-resistant gloves (leather welding gloves ideal)
• Work in well-ventilated area (wood smoke)
• Keep flammable materials away
• Have water or extinguisher ready

Branding Technique:

1. Remove iron from heat
2. Work quickly (brass cools fast – you have ~20-30 seconds)
3. Position on workpiece (pre-marked if possible)
4. Press firmly and evenly (50-100N force)
5. Hold steady for 8-15 seconds:
   • You’ll smell wood burning (normal)
   • Light smoke is expected
   • Brass will slightly sink into softwood
6. Lift straight up
7. Immediate re-heat required for next branding (brass cools to <200°C in 60 seconds)

Advantages:

• Portable (no electricity needed)
• Traditional aesthetic/technique
• Works on large items that don’t fit on machine
• Outdoor use possible

Disadvantages:

• Inconsistent temperature (varies brand-to-brand)
• Requires practice to master
• Safety hazards (open flame, hot metal)
• Slower for production runs

Method 3: Induction Heating (Modern/Professional)

Equipment:

• Portable induction heater (like mini-ductor)
• Branding iron with ferrous metal content (brass with steel insert, or pure steel head)

Process:

• Place induction coil around brass head
• Heat for 30-60 seconds (depends on wattage)
• Temperature feedback via IR thermometer
• Very fast, very consistent

Note: Standard brass heads heat slowly with induction (brass is non-ferrous). Works best with steel-core custom heads.

Method 4: Wood Stove/Fireplace (Rustic/Large-Scale)

For Traditional Craftspeople:

• Place branding iron in wood stove embers
• Heat for 10-15 minutes
• Check temperature with water droplet test
• Suitable for large branding heads (conserves fuel)
• Very traditional method used historically

Caution: Difficult to control temperature precisely – risk of overheating brass (turns purple/blue, loses temper)

Material-Specific Branding Guidelines

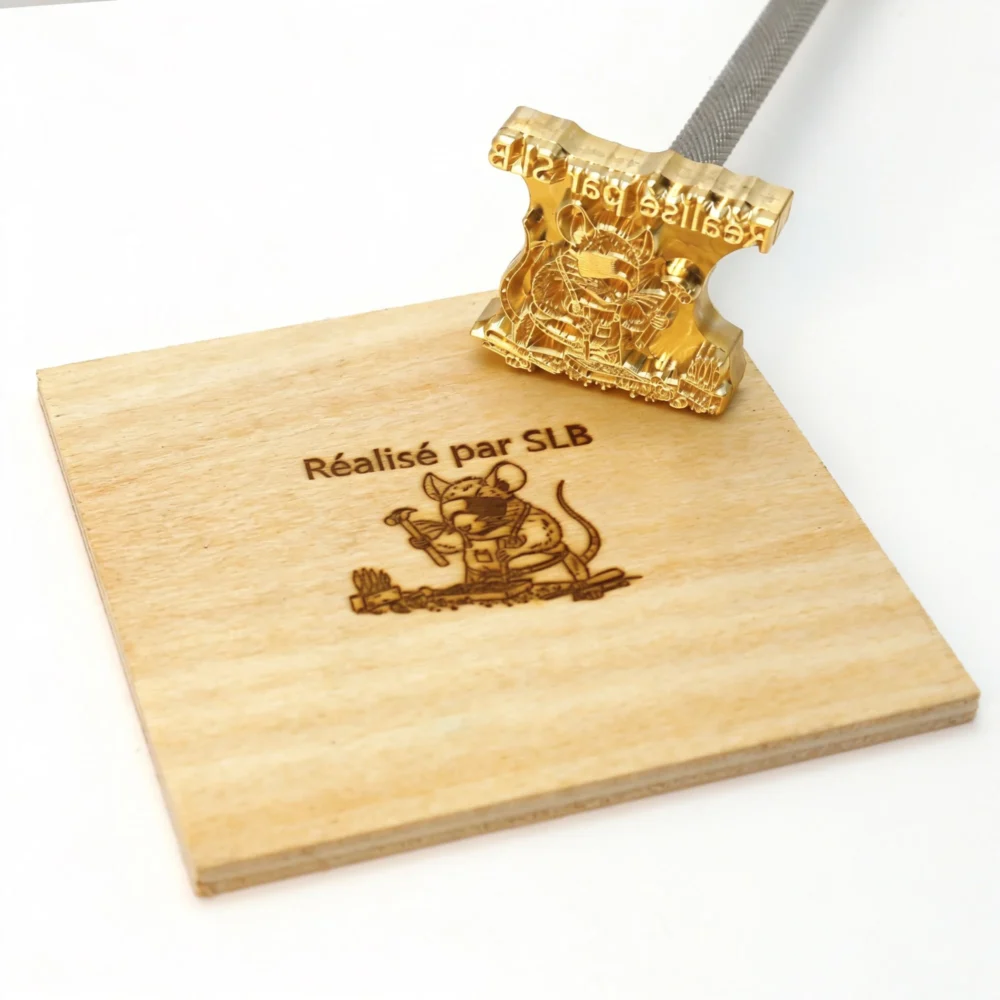

Wood Branding

Temperature & Time by Wood Type:

Wood Preparation:

• Sand smooth (220-320 grit minimum)
• Remove dust with tack cloth
• Avoid oily woods (teak, rosewood) unless degreased
• Moisture content: 8-12% ideal (too wet = steam bubbles, too dry = scorching)

Pressure Guidelines:

• Softwoods: Light-medium pressure (brass sinks in slightly)
• Hardwoods: Firm pressure (brass should not sink in)
• Plywood/MDF: Medium pressure, shorter time (glue can cause uneven branding)

Leather Branding

Temperature Range: 160-220°C (much cooler than wood!)

By Leather Type:

• Vegetable-tanned (tooling leather): 180-200°C, 3-5 sec

  • Creates darkest, clearest imprint
  • Depth: 0.5-1mm
  • Can add water/moisture before branding for deeper impression

• Chrome-tanned (garment leather): 160-180°C, 2-4 sec

  • Lower temp to avoid melting finish
  • Shallow impression (0.2-0.5mm)
  • Test on hidden area first

• Suede/Nubuck: 140-160°C, 2-3 sec

  • Very delicate – easy to scorch
  • Matts down nap rather than burning

• Full-grain oiled leather: 170-190°C, 3-5 sec

  • May need degreasing first
  • Oil can cause uneven branding

Leather Preparation:

• Wipe clean with damp cloth
• For veg-tan: Can dampen slightly for deeper brand
• Avoid heavily finished/coated leathers (brand won’t show well)

Pressure:

• Light-medium pressure only
• Leather is soft – too much pressure creates indentation beyond brand area

Cork Branding

• Temperature: 250-280°C
• Dwell Time: 6-10 seconds
• Depth: 0.5-1mm (cork compresses easily)
• Notes: Cork is very forgiving – brands easily with good contrast

Bamboo Branding

• Temperature: 300-330°C
• Dwell Time: 10-15 seconds
• Notes: Similar to hardwood, burns to dark brown/black

Troubleshooting Branding Issues

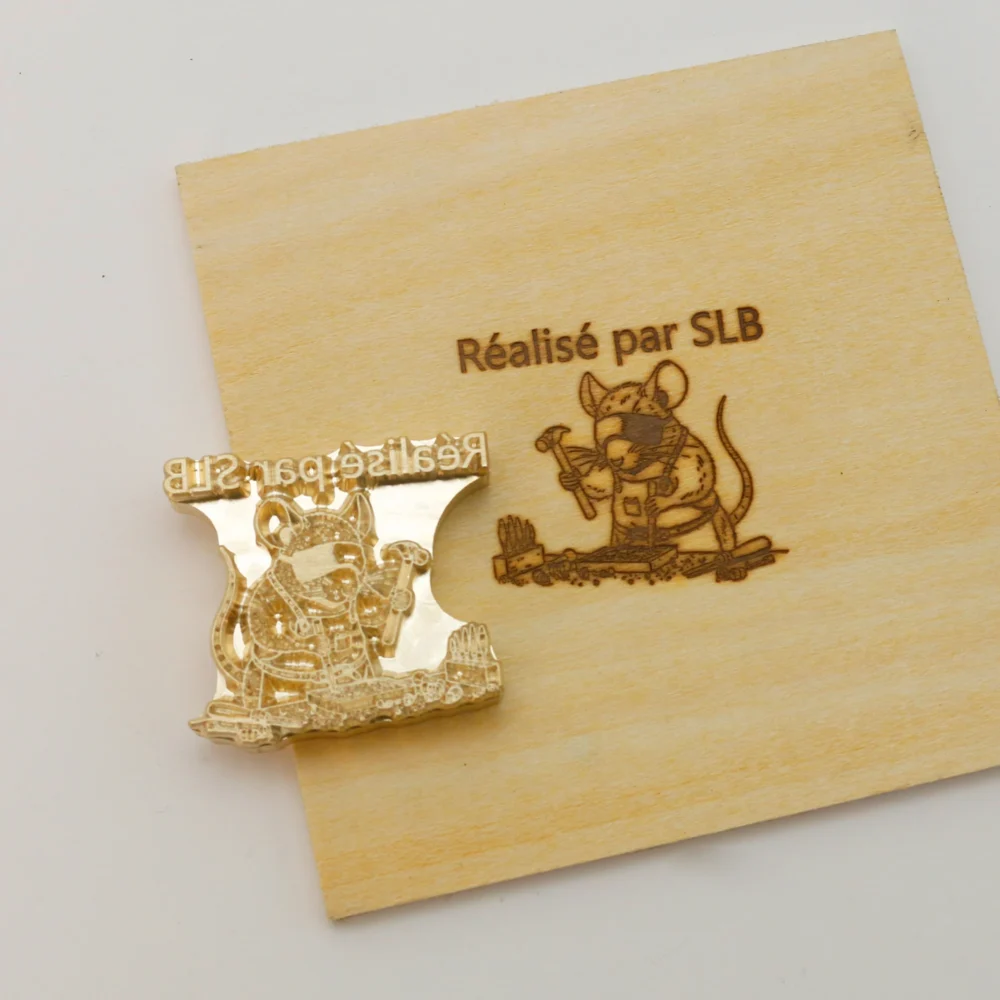

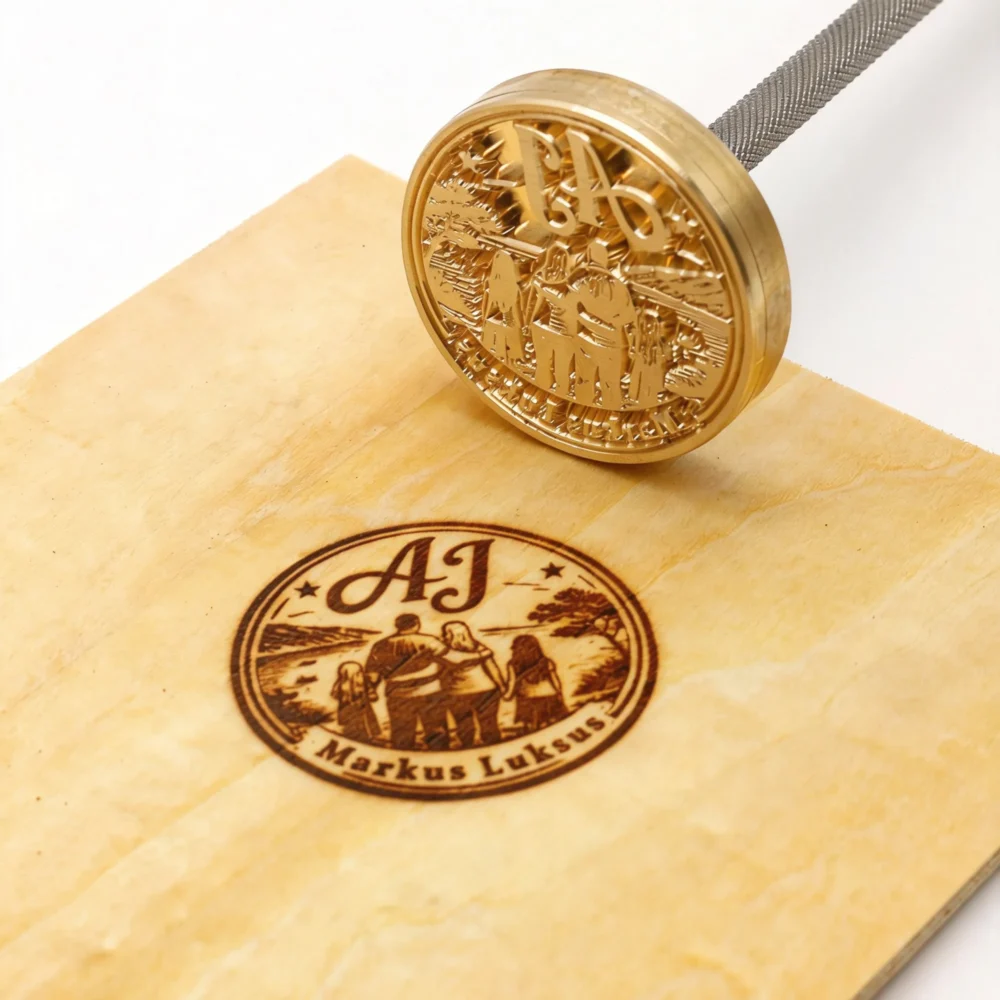

Branding Examples & Effects

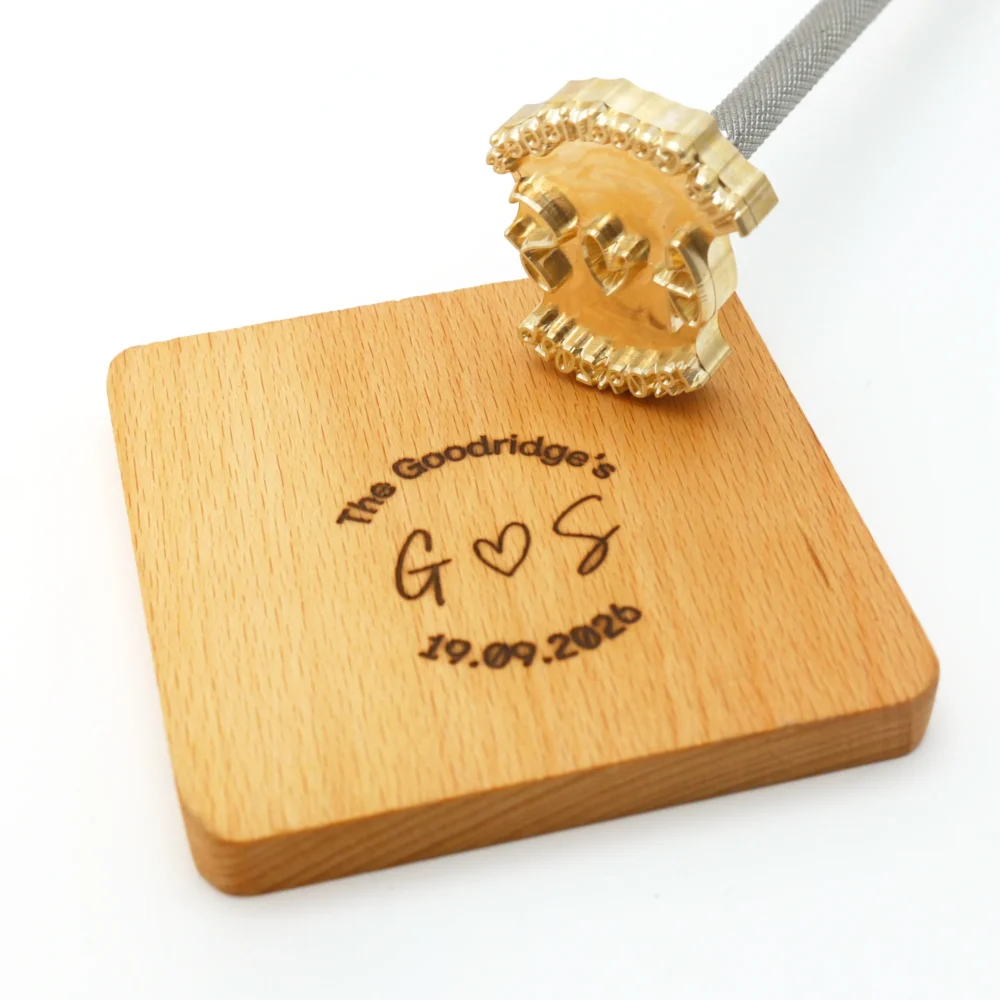

• Wood Coasters: Create custom drink coasters for cafes, breweries
• Wooden Boxes: Brand handmade gift boxes, jewelry boxes
• Leather Goods: Mark leather belts, straps, tags
• Furniture: Artisan signatures on custom furniture
• Corporate Gifts: Branded cutting boards, serving boards

Perfect For

• Woodworking Studios: Sign your craftsmanship
• Leather Artisans: Traditional branding technique
• Craft Breweries: Brand wooden tap handles, coasters
• Wedding Services: Create personalized favors (cutting boards, signs)
• Furniture Makers: Signature branding on custom pieces
• Gift Shops: Offer on-site personalization services

Custom Design Process

From Your Idea to Finished Iron in 1 Week!

1. Submit Design: Email logo/artwork in AI/PDF/JPG format
2. Free Design Service: Our team optimizes your artwork for branding
3. Proof Approval: Review and approve digital proof
4. Production: 3-7 days manufacturing
5. Quality Test: Free test branding included
6. Shipping: Fast worldwide delivery

Pricing & MOQ

• Sample Branding Iron: Custom quote based on size/complexity
• MOQ: Just 1 piece!
• Volume Discounts: Available for workshops and resellers
• Free Design: Included with every custom order

Popular Custom Requests

• Personal names for woodworking tools
• Business logos for product branding
• Wedding dates and monograms
• Family crests and coat of arms
• Shop names for artisan businesses
• “HANDMADE BY…” signatures
